Solar PV tẹẹrẹ Machine

Solar PV Ribbon & MBB Wire Manufacturing Solutions

GRM n pese awọn solusan iṣelọpọ pipe funPV interconnect tẹẹrẹ, PV busbar tẹẹrẹ ati MBB yika waya gbóògì. Portfolio ohun elo wa ni wiwa sẹsẹ konge, annealing, tinning, itọju dada ati awọn eto spooling laifọwọyi, atilẹyin iṣelọpọ ti awọn oludari iṣẹ ṣiṣe giga fun awọn modulu fọtovoltaic ode oni.

Ti a ṣe apẹrẹ fun didara iduroṣinṣin, iṣakoso iwọn kongẹ ati iṣẹ ṣiṣe igba pipẹ ti o gbẹkẹle, awọn solusan GRM ṣe iranlọwọ fun awọn aṣelọpọ lati pade ibeere ti ndagba fun awọn imọ-ẹrọ ibaraenisepo oorun sẹẹli ti o ga julọ.

Awọn Solusan Ohun elo pipe fun Awọn oludari Oorun

PV Interconnect Ribbon

PV Busbar

MBB Yika Waya

Interconnect tẹẹrẹgbigbe lọwọlọwọ laarin awọn sẹẹli oorun,busbar tẹẹrẹgba ki o si fi lọwọlọwọ si awọn ipade apoti, nigba tiMBB yika wayamu ki o ga module ṣiṣe nipa atehinwa shading adanu.

Awọn oludari wọnyi ṣe ipa pataki ninu iṣelọpọ agbara, igbẹkẹle ati iṣẹ module igba pipẹ.

Bawo ni Awọn oludari Oorun Ṣe ṣelọpọ

GRM n pese awọn solusan iṣelọpọ pipe fun iṣelọpọ adaorin oorun. Ohun elo GRM ni wiwa iṣan-iṣẹ iṣelọpọ pipe lati yiyi to peye ati annealing si tinning ati spooling ohun elo ohun elo bàbà si ribbon PV ti pari ati awọn ọja waya MBB.

Ilana iṣelọpọ iṣọpọ ṣe idaniloju deede iwọn, didara bora ati ṣiṣe iṣelọpọ giga.

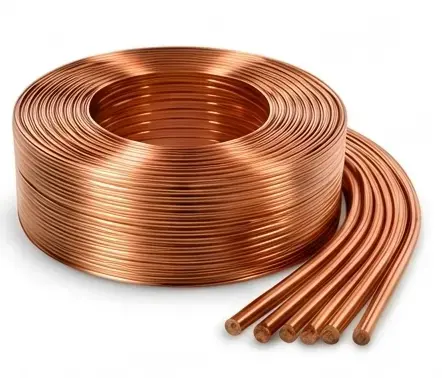

Aise Ejò elo

Ga-ti nw Ejò ọpá bi awọn aise ohun elo

Ejò Rod

Ejò Waya

→

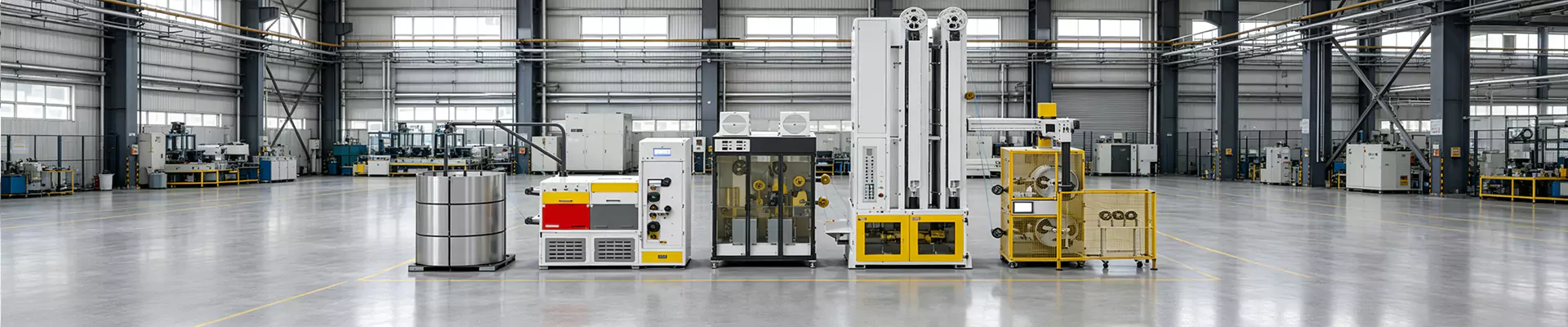

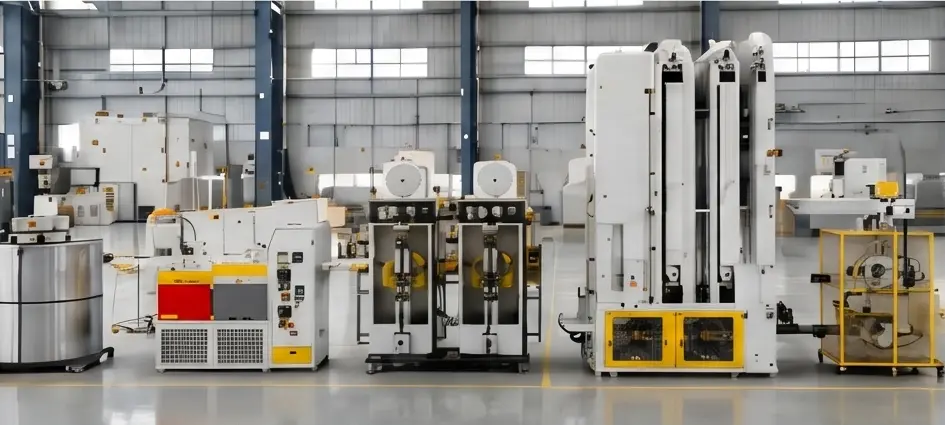

Awọn ohun elo iṣelọpọ GRM

Laini iṣelọpọ pipe fun dida deede, annealing ati spooling

Yiyi
Mill

Annealing
Ileru

Dada
Itọju

Spooling
Eto

Itanna
Iṣakoso

→

Awọn oludari Oorun

Ribon PV ti o ga-giga ati okun waya yika MBB

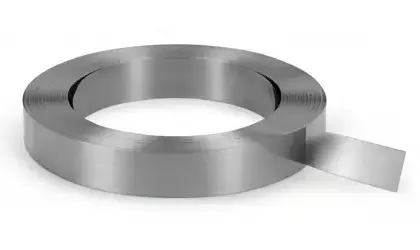

PV Ribbon

(Asopọmọra Ribbon / Busbar Ribbon)

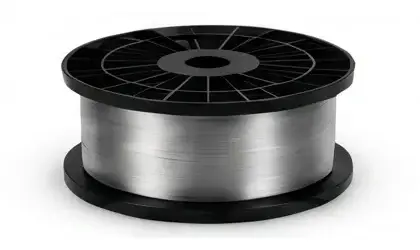

MBB Yika Waya

(φ0.20-0.25 mm)

→

Module oorun

Lo ni ga-ṣiṣe oorun modulu

TOPcon
Awọn modulu

HJT
Awọn modulu

Ifiwera ọja.

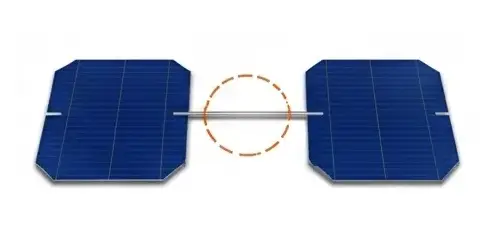

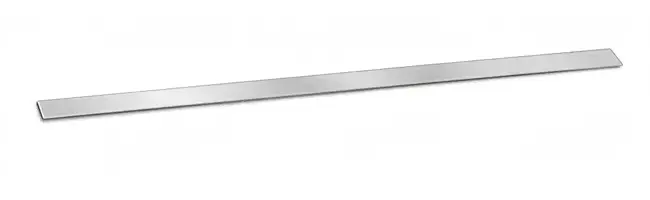

PV Interconnect Ribbon

(Ribbon Tabbing)

Išẹ

Cell Asopọ

Ìbú

0,3 - 1,6 mm

Sisanra

0.10 - 0.25 mm

Ohun elo

Okun sẹẹli

So awọn sẹẹli ti o wa nitosi kọja okun module.

Anfani bọtini

Gbẹkẹle asopọ alagbeka-si-cell pẹlu solderability giga ati adaṣe to dara julọ.

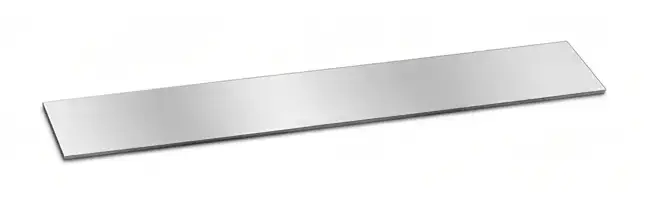

PV Busbar Ribbon

(Okun ọkọ akero)

Išẹ

Lọwọlọwọ Gbigba

Ìbú

3.0 - 8.0 mm

Sisanra

0.20 - 0.50 mm

Ohun elo

Ijade Module

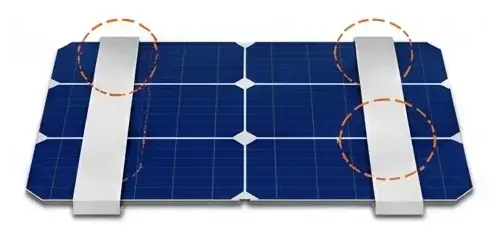

Busbar ribbon current collection diagram

Gba lọwọlọwọ lati awọn sẹẹli ti o ni asopọ ati awọn gbigbe si apoti ipade.

Anfani bọtini

Agbara kekere ati agbara gbigbe lọwọlọwọ fun iṣelọpọ agbara ti o pọju.

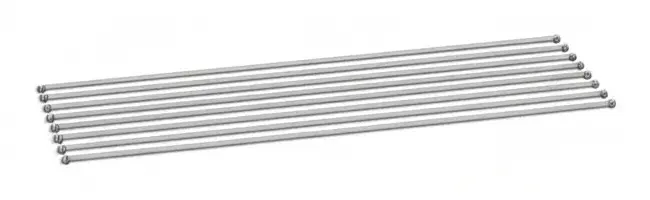

PV MBB Yika Waya

Išẹ

Olona-Busbar Asopọ

Iwọn opin

φ0.20 - 0.26 mm

Sisanra

–

Ohun elo

Awọn modulu Ṣiṣe-giga

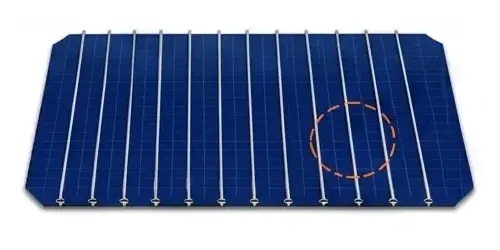

MBB round wire soldering on cell surface

Soldered lori oju sẹẹli lati dinku shading ati ilọsiwaju ṣiṣe.

Anfani bọtini

Dinku shading pipadanu ati ki o dara ina iṣamulo fun ga module ṣiṣe.

Ẹya ara ẹrọ	Ribbon Interconnect PV (Ribọn Tabbing)	Ribbon Busbar PV (Wọn ọkọ akero)	PV MBB Yika Waya
Išẹ	Cell Asopọ	Lọwọlọwọ Gbigba	Olona-Busbar Asopọ
Ìbú	0.3-1.6mm	3.0-8.0mm	-
Awọn sisanra	0.1 -0.25mm	0.20 -0.50mm	-
Iwọn opin	-	-	φ0.20-0.26mm
Ohun elo	Okun sẹẹli	Module Jade	Awọn modulu Ṣiṣe-giga

Ribọn PV ati okun waya yika MBB jẹ lilo pupọ ni iṣelọpọ ti awọn modulu fọtovoltaic ti o ga julọ. Pẹlu isọdọmọ iyara ti TOPCon, HJT ati awọn imọ-ẹrọ sẹẹli BC, awọn aṣelọpọ nilo awọn oludari pẹlu konge giga, solderability to dara julọ ati ilọsiwaju iṣẹ itanna.

Ohun elo GRM ṣe atilẹyin iṣelọpọ ti awọn oludari oorun ti a lo ninu:

Awọn modulu TOPcon

Awọn modulu HJT

Awọn modulu BC

Modulu Crystalline Silicon Modules

IwUlO-asekale oorun Power Systems

Pinpin Solar Energy Projects

Gbẹkẹle nipa Industry Olori

A ti pese ohun elo GRM si ribbon PV oludari ati awọn aṣelọpọ adaorin oorun ni Ilu China ati awọn ọja okeere. Nipasẹ awọn ọdun ti ifowosowopo pẹlu awọn alabaṣiṣẹpọ ile-iṣẹ, GRM ti ṣajọpọ iriri lọpọlọpọ ni sẹsẹ adaorin, annealing, tinning ati iṣapeye ilana.

Awọn solusan ẹrọ ribbon oorun wa ti oorun PV ṣe atilẹyin awọn aṣelọpọ ti n ṣe awọn oludari fun awọn modulu oorun ti o ga julọ ati ṣe iranlọwọ fun awọn alabara mu iṣẹ ṣiṣe, aitasera ọja ati igbẹkẹle iṣiṣẹ igba pipẹ.

Bẹrẹ Iṣẹ iṣelọpọ Solar PV Rẹ

Boya o n wọle si ile-iṣẹ adaorin PV tabi faagun agbara iṣelọpọ rẹ, GRM n pese awọn solusan ohun elo pipe, oye ilana ati atilẹyin imọ-ẹrọ igba pipẹ.

Kan si GRM funa adaniTẹẹrẹ PV tabi ojutu iṣelọpọ okun waya MBB.

Kini idi ti o yan GRM?

Idojukọ lori jiṣẹ ohun elo ilọsiwaju ati awọn solusan igbẹkẹle fun ribbon PV ati iṣelọpọ okun waya MBB.

20+

Awọn ọdun

Konge sẹsẹ Iriri

Imọye nla ni yiyi konge, bo ati ẹrọ iṣelọpọ adaorin.

10+

Awọn itọsi

Itọsi ọna ẹrọ

Awọn imọ-ẹrọ itọsi lọpọlọpọ fun sẹsẹ konge, iṣakoso ẹdọfu ati awọn ilana itọju dada.

100+

Awọn ila ti a fi sori ẹrọ

Industry Reference

Igbẹkẹle nipasẹ ribbon PV asiwaju ati awọn aṣelọpọ ti oorun ni agbaye.

24/7

Oluranlowo lati tun nkan se

Lifecycle Service

Atilẹyin okeerẹ lati fifi sori ẹrọ ati fifisilẹ si awọn iṣagbega ati iṣapeye.

Awọn ibeere Nigbagbogbo

1. Kini ribbon PV?

Ribọn PV jẹ adaorin idẹ alapin ti a bo pẹlu solder ati lilo lati so awọn sẹẹli oorun pọ si inu awọn modulu fọtovoltaic.

2. Kini iyato laarin interconnect ribbon ati busbar tẹẹrẹ?

Interconnect tẹẹrẹ so oorun ẹyin, nigba ti busbar tẹẹrẹ gba ati ki o gbe itanna lọwọlọwọ si awọn ipade apoti.

3.What ni MBB yika waya?

MBB yika waya ti lo ni olona-busbar oorun modulu lati din shading adanu ati ki o mu module ṣiṣe.

4.What ẹrọ ti a beere lati ṣe ribbon PV?

Laini iṣelọpọ tẹẹrẹ PV pipe ni igbagbogbo pẹlu yiyi, annealing, tinning, iṣakoso ẹdọfu ati awọn eto spooling.

5.Can ọkan gbóògì ila gbe awọn ti o yatọ tẹẹrẹ titobi?

Bẹẹni. Awọn ọna GRM le jẹ tunto fun iṣelọpọ rọ ati iyipada ọja ni iyara.

View as

PV Busbar Ribbon Production Line

GRM PV Busbar Ribbon Production Line jẹ apẹrẹ lati ṣe ilana TU1 ti ko ni atẹgun ti Ejò yika okun waya sinu tẹẹrẹ alapin alapin ti a bo ni pipe to gaju. Laini naa dara fun ribbon interconnection PV, ribbon busbar, ati iṣelọpọ tẹẹrẹ busbar afihan.
Laini pipe n ṣepọ iyaworan waya, yiyi konge, annealing lemọlemọfún, itọju ṣiṣan, bo tin-dip tin gbona, ati gbigba laifọwọyi. O ṣe iranlọwọ fun awọn olupilẹṣẹ tẹẹrẹ PV lati ṣakoso iwọn ati deede sisanra, didara ibora tin, taara ṣiṣan, ati aitasera yikaka.
GRM busbar ribbon gbóògì laini isunmọ 26 m gun ati 3 m fifẹ, pẹlu iwuwo laini lapapọ ti o to awọn toonu 14. Iyara apẹrẹ le de ọdọ 150 m/min, da lori iwọn okun waya Ejò, awọn iwọn tẹẹrẹ ti pari, iyara tinning, ati ọna gbigbe. Labẹ awọn ipo iṣelọpọ aṣoju, iṣelọpọ oṣooṣu le de ọdọ awọn toonu 60-80.

Ka siwaju Fi ibeere ranṣẹ

New Solar PV Yika Waya Machine

GRM Tuntun Solar PV Yika Waya ẹrọ jẹ apẹrẹ fun iṣelọpọ awọn ribbons interconnection, ohun elo imudani mojuto ti a lo ninu awọn modulu PV.
Laini naa ṣepọ iyaworan konge, tinning, iṣakoso ẹdọfu, ati yiyi ni oye lati ṣe atilẹyin geometry tẹẹrẹ iduroṣinṣin, sisanra aṣọ aṣọ, ati awọn ohun-ini ẹrọ deede. Awọn agbara ilana wọnyi ṣe iranlọwọ fun awọn aṣelọpọ PV mu didara isọpọ sẹẹli pọ si, igbẹkẹle module, ati aitasera iṣelọpọ igba pipẹ.

Ka siwaju Fi ibeere ranṣẹ

<1 >

Gẹgẹbi olupese ati olupese Solar PV tẹẹrẹ Machine ti o gbẹkẹle ni Ilu China, a ni ile-iṣẹ wa. Ti o ba fẹ ra didara ati awọn ọja ti o tọ, jọwọ kan si wa.
