              Solar PV Yika Waya Machine
              • Solar PV Yika Waya MachineSolar PV Yika Waya Machine
              • Solar PV Yika Waya MachineSolar PV Yika Waya Machine
              • Solar PV Yika Waya MachineSolar PV Yika Waya Machine

              Solar PV Yika Waya Machine

              GRM Rolling Mill jẹ olutaja oludari agbaye ti ohun elo iṣelọpọ pipe (bii ẹrọ Solar PV Round Wire Machine) ati awọn solusan laini pipe fun awọn ribbons fọtovoltaic, ni pataki MBB ribbons. A ṣe amọja ni pipese imọ-ẹrọ okeerẹ fun iṣelọpọ awọn ribbons isọpọ-ohun elo ifọnọhan mojuto fun awọn modulu PV-ibora iyaworan pipe, akoko, ati yiyi ni oye. A ṣe apẹrẹ ohun elo wa lati ṣaṣeyọri iduroṣinṣin iyasọtọ ati aitasera ni geometry ribbon, isokan ti a bo, ati awọn ohun-ini ẹrọ, eyiti o ṣiṣẹ bi okuta igun fun imudara ṣiṣe sẹẹli ati igbẹkẹle module igba pipẹ.

              Fi ibeere ranṣẹ

              ọja Apejuwe
              1/3

              GRM Photovolatic Ribbon Production Line

              Ile-iṣẹ GRM ṣe amọja ni R&D ati iṣelọpọ ti pipe awọn laini iṣelọpọ fun awọn ribbons fọtovoltaic iṣẹ ṣiṣe giga, paapa MBB (Multi-Busbar) ribbons. Wa Solar PV Yika Waya Machine ni še lati pade awọn ile ise ká escalating wáà fun konge ati išẹ, aridaju ni kikun-ilana Iṣakoso konge lati ohun elo aise si ọja ti o pari. Eyi jẹ ki awọn alabara wa ṣe agbejade awọn ribbons ti o ni agbara giga pẹlu adaṣe iyasọtọ, soldering igbekele, ati ki o gun-igba oju ojo resistance.

              Pataki pato

              • Ibiti ilana: Awọn mimu okun waya ti nwọle to 1.6 mm iwọn ila opin ti o pọju, ti n ṣe ọja tẹẹrẹ ti o pari ni iwọn kongẹ ti 015mm si 0.4 mm.
              • Iṣẹ apinfunni akọkọ: Lati rii daju pe ribbon ti o pari ti kọja awọn iṣedede ile-iṣẹ ni aitasera iṣẹ, sisanra ibora/aṣọṣọkan, iduroṣinṣin agbara ikore, ati ifọkansi / ibamu apẹrẹ.
              • Idaniloju Didara: Awọn ọna ṣiṣe ayewo ori ayelujara ti ilọsiwaju ṣe iṣeduro 100% ibamu pẹlu awọn iṣedede didara okun ti ile-iṣẹ PV.
              1/3

              Awọn anfani Imọ-ẹrọ bọtini

              • Nlo ilana PLD(Eto Logic Drive) fun iyara laini iṣọpọ, ṣiṣe awọn iyipada iyara didan ati mimuuṣiṣẹpọ daradara.
              • Gbigbe iṣakoso Servo-motor ṣe idaniloju ẹdọfu igbagbogbo ati yiyi okun afinju.

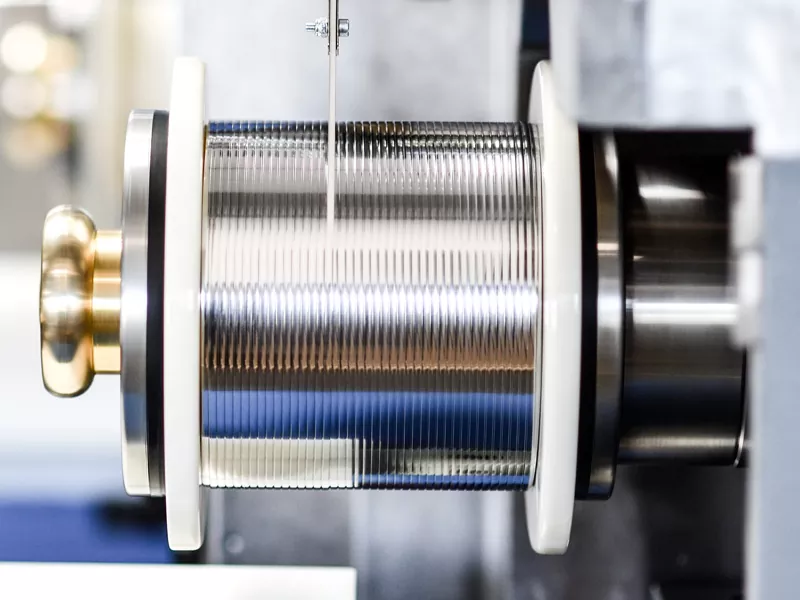

              • Imọ-ẹrọ Yiyi Aladani: “Gbigbe Waya” (fun okun waya yika) ati “Bobbin Gbigbe” (fun tẹẹrẹ alapin)

              Ni ipilẹ ṣe idaniloju wiwọ lile pupọ ati yiyi aṣọ, imukuro patapata “apapọ” ati “yiyi aafo”, pataki jijẹ agbara spool ati iduroṣinṣin isanwo.

              Awọn aṣayan Iṣeto ni irọrun

              GRM nfunni ni kikun Aifọwọyi ni kikun ati awọn awoṣe ologbele-laifọwọyi lati baamu awọn isuna idoko-owo oriṣiriṣi ati awọn ibeere adaṣe nipa Ẹrọ Waya Yika Solar PV.


              Imọ Data

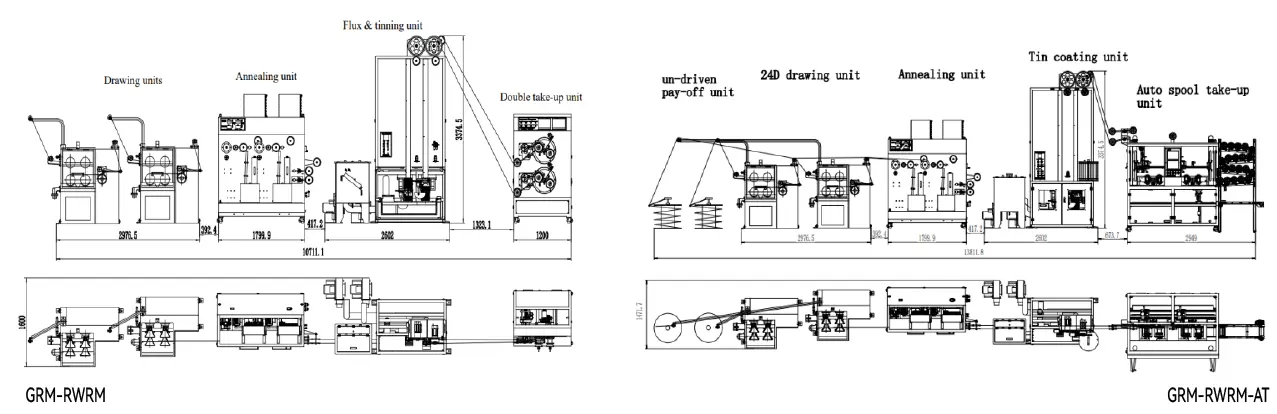

              Awoṣe Intel Iwon Ti pari Iwon Iyara Agbara Ikore
              GRM-RWRM Φ1-Φ0.6mm lẹhin ti a bo: φ 0.15-0.4mm 400m/iṣẹju 60-75MPa
              GRM-RWRM-AT Φ1-Φ0.6mm lẹhin ti a bo: % 0.15-0.4mm 600m/iṣẹju 60-75MPa

              Awoṣe GRM-RWRM-AT ṣepọ Eto Ikojọpọ Bobbin Aifọwọyi kan, dinku kikọlu afọwọṣe pupọ; ti o ni ipese pẹlu ifunni Tin Aifọwọyi ati Awọn ọna ṣiṣe akoko lati rii daju iṣelọpọ ilọsiwaju ati aitasera ilana.

              Oja idanimọ

              Wa ẹrọ ti mina awọn igbekele ati olomo ti asiwaju agbaye PV manufacturers.Key ajumose ibara ni JA Solar, Telison, Adity Birla Group, ati awọn miiran ile ise aṣepari,reliably ni atilẹyin wọn tobi-asekale gbóògì ti ga-ṣiṣe cell modulu.

              GRM ṣe ifaramọ lati jẹ alabaṣepọ igbẹkẹle rẹ ni imudara didara tẹẹrẹ, idinku awọn idiyele gbogbogbo, ati fikun ifigagbaga ọja pataki rẹ nipasẹ imọ-ẹrọ ohun elo ilọsiwaju ati oye ilana ti o jinlẹ. Kaabọ lati kan si wa ati ra didara wa ẹrọ Waya Yika Solar PV!
