CTC Tesiwaju Laini adaorin Iyipada

The GRM Rolling Mill CTC Tesiwaju Transposed Line Conductor ṣogo iṣẹ iduroṣinṣin ati konge giga, ṣe atilẹyin atunṣe iyara ati awọn atunto ti a ṣe adani, ati pe o wulo pupọ si iṣelọpọ waya konge ni oluyipada, ọkọ agbara titun, ohun elo ile, iṣoogun, ati awọn aaye itanna aerospace. Pe wa!

Fi ibeere ranṣẹ

ọja Apejuwe

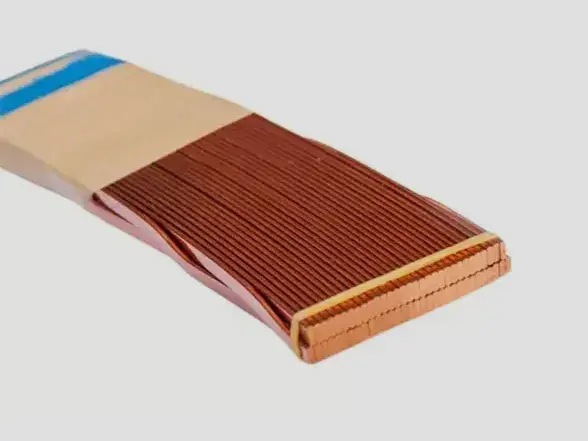

GRM Rolling Mill's CTC Tesiwaju Titaja Laini Olutọju Ilọsiwaju nigbagbogbo lati 5 soke si awọn okun 47 nipasẹ didan iṣẹ tutu, awọn okun onirin alapin Ejò alapin ti ko ni atẹgun pẹlu varnish idabobo ati murasilẹ pẹlu iwe idabobo ati awọn ohun elo idabobo miiran. Awọn olutọsọna naa yoo wa ni idẹkùn sinu iwapọ ati idayatọ daradara ti onigun mẹrin adaorin adaorin apa-apakan.

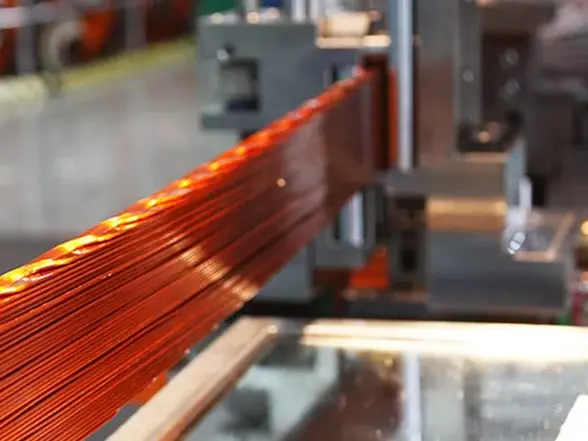

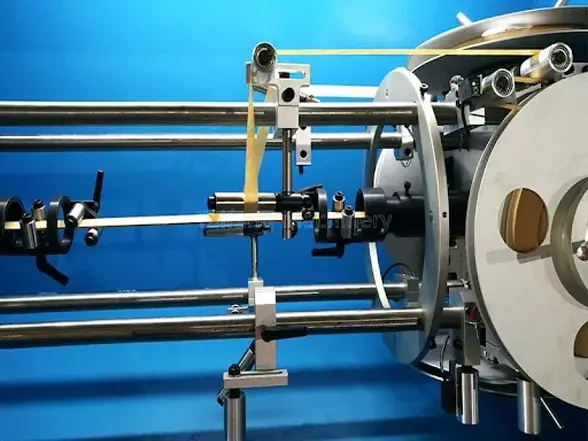

CTC Continuously Transposed Conductor Line

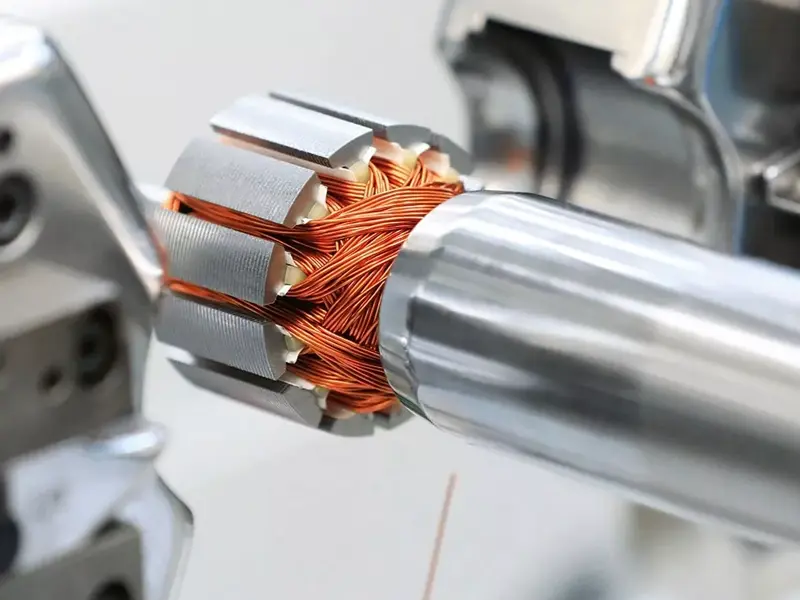

CTC Continuously Transposed Conductor Line for EV components

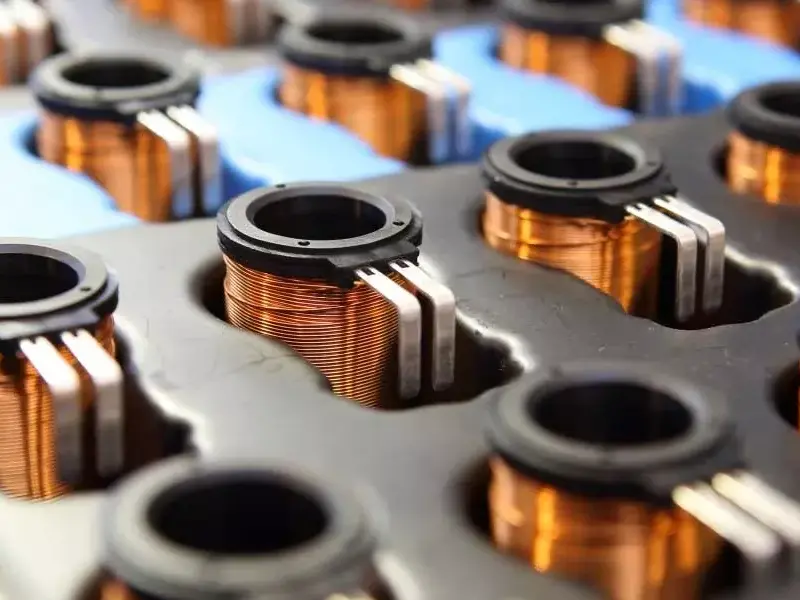

CTC Continuously Transposed Conductor Line for Household appliances

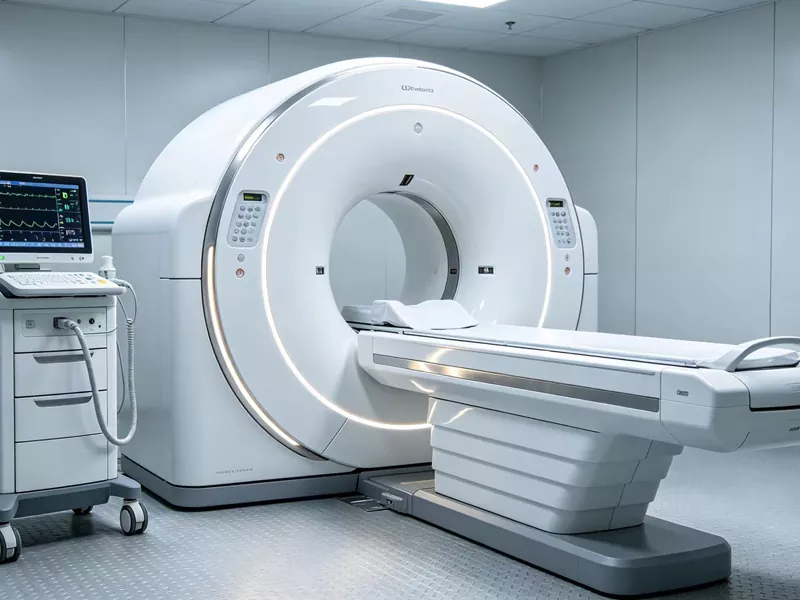

CTC Continuously Transposed Conductor Line for Medical devices

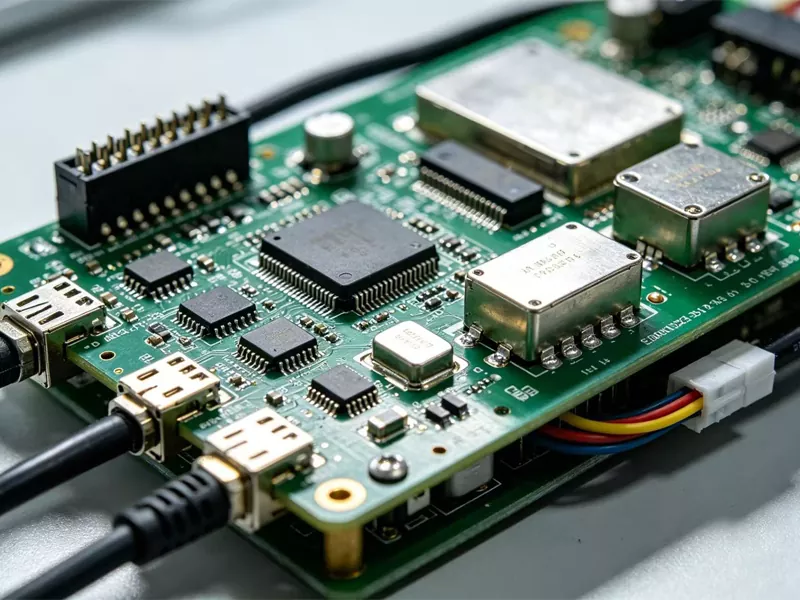

CTC Continuously Transposed Conductor Line for Aerospace electrical assemblies

Ohun elo Industries

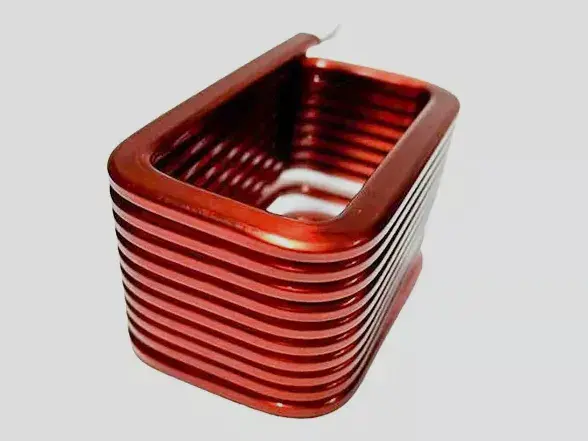

1. windings transformer

2. EV irinše

3. Awọn ohun elo ile

4. Awọn ẹrọ iwosan

5. Aerospace itanna ijọ

Ifilelẹ Ilana akọkọ

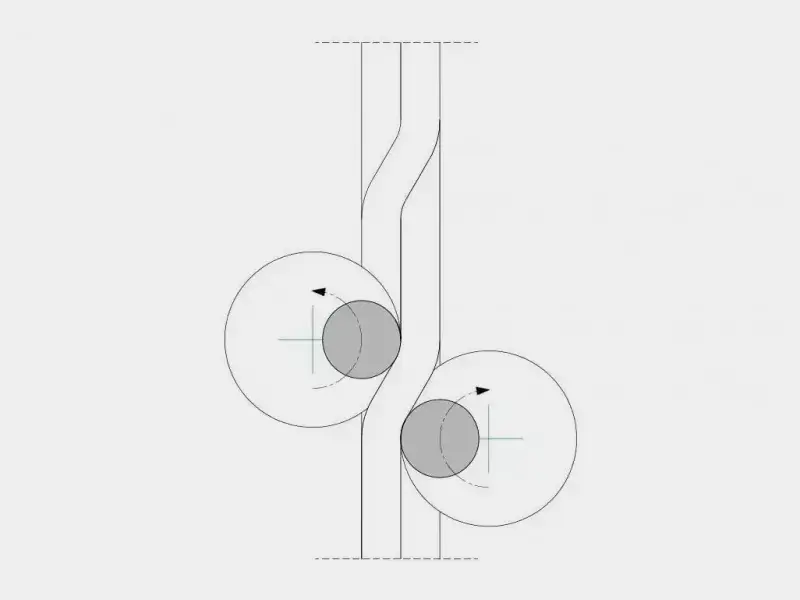

Isanwo → Itọnisọna ti o jọra → Iyipada Iyipada pipe → Fifẹ idabobo (Aṣayan) → Gbigbawọle

Imọ ni pato

Nikan adaorin paramita	Min	O pọju
Sisanra	1.15mm	3.15mm
Ìbú	3.0mm	12.5mm
Iwọn / Sisanra Ratio	3:1	8:1
Enamel Sisanra	0.08mm	0.18mm

Awọn paramita adaorin CTC	Min	O pọju
Iyara iṣelọpọ	1 m/min	15 m/ min
Nọmba ti conductors	5 (abo)	47 (abo)
Giga (mm)	5.0	80.0
Ìbú (mm)	6.0	26.0
Pitch Iyipada (mm)	20	280
Iwọn Giga / Iwọn	1:3	8:1
Iyara Titari Transposition	colspan=“2”	150 igba / min

Key Awọn ẹya ara ẹrọ

1. Eto transposition konge fun titete adaorin iduro

2. CTC Laini Oludari Iṣipopada Tẹsiwaju le wa ni ibaramu pẹlu awọn oludari idẹ alapin ti a bo enamel

3. Iyan idabobo iwe murasilẹ kuro

4. Servo-dari ẹdọfu ati yikaka eto

Awọn anfani Imọ-ẹrọ

Ohun elo iṣelọpọ GRM ti ni ipese pẹlu ibora ori ayelujara ati awọn eto ayewo ti o lagbara lati ṣiṣẹ awọn onirin oofa pataki pẹlu awọn aṣọ enamel ọpọ-Layer. Sisẹ ibora tuntun laarin ohun elo kanna ṣe ilọsiwaju iṣẹ resistance itanna ati mu didara dada adaorin pọ si. Itọju ori ayelujara ti o tẹsiwaju siwaju ṣe idaniloju aitasera onisẹpo ati iduroṣinṣin iṣẹ ṣiṣe igba pipẹ.

FAQ

1. Kini oludari CTC?

CTC (Oludari Transposed Tẹsiwaju) jẹ lapapo adaorin onigun ti a ṣe nipasẹ gbigbe nigbagbogbo ọpọlọpọ awọn oludari alapin ti o ya sọtọ lati dinku awọn adanu lọwọlọwọ eddy ni awọn oluyipada.

2. Awọn ohun elo wo le ṣe ilana laini?

A ṣe apẹrẹ laini ni pataki fun awọn olutọpa idẹ alapin ti ko ni atẹgun ti a bo enamel ati awọn ohun elo waya oofa ti o ni ibatan.

3. Njẹ ẹrọ le ṣe adani?

Bẹẹni. GRM n pese awọn atunto adani ni ibamu si awọn iwọn adaorin, iyara iṣelọpọ, eto idabobo, ati ipilẹ ọgbin.
