4 Ga dín rinhoho sẹsẹ Mills iparọ

GRM-S 4 ga ga dín sẹsẹ Mills yiyi lati GRM Rolling Mill factory ti wa ni apẹrẹ funyiyi konge ti awọn ila dín ni isalẹ 140 mm iwọn. Ni ipese pẹlu eto yiyi ti o yiyi pada, PLC, iboju ifọwọkan ati eto iṣakoso servo, ọlọ naa jẹ ki yiyi ọpọlọpọ-kọja ti awọn ohun elo adikala slit pẹlu iwọn sisanra ti o dara julọ, filati adikala ati didara eti. O jẹ ojutu pipe fun awọn ohun elo iye-giga ti o nilo mejeeji konge ati irọrun iṣelọpọ.

Fi ibeere ranṣẹ

ọja Apejuwe

GRM nikan iduro yiyi awọn ọlọ jẹ o dara fun sẹsẹ titọ ti awọn ohun elo ti o yatọ pẹlu irin silikoni, irin alagbara, irin aluminiomu ati awọn ohun elo titanium. Ipo yiyi ti o yiyi pada ngbanilaaye ṣiṣe eto iwọle rọ ni ibamu si awọn ohun-ini ohun elo ati sisanra ibi-afẹde.

Ti o ṣe afihan ipilẹ iwapọ ati ipin iṣẹ ṣiṣe iye owo giga, ọlọ jẹ paapaa dara julọ fun iṣelọpọ ipele kekere-si-alabọde, awọn ohun elo R&D ati sisẹ-sipesifikesonu pupọ.

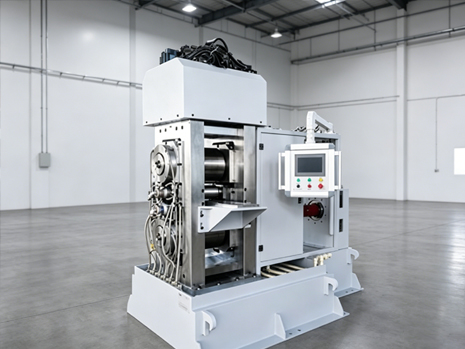

4-high narrow strip reversing mill overview

4-high reversing mill main unit with work and backup rolls

Narrow strip reversing mill for stainless steel rolling

Silicon steel narrow strip rolling on 4-high reversing mill

Aluminum alloy narrow strip reversing rolling

Awọn ohun elo ti o wulo

Fadaka ati fadaka alloy awọn ila

Aluminiomu alloy awọn ila

Aluminiomu-orisun agbada awọn ila

Irin alagbara, irin awọn ila

Silikoni irin awọn ila

Titanium alloy ati titanium agbada awọn ila

Iṣeto ni

Ọkan gbigba Syeed ni mejeji titẹsi ati awọn ẹgbẹ ijade

4-ga ifasilẹ awọn sẹsẹ ọlọ akọkọ kuro

Iwakọ ni ominira ti oke ati isalẹ yipo fun yiyi asynchronous

PLC + HMI + Servo eto iṣakoso iṣọpọ

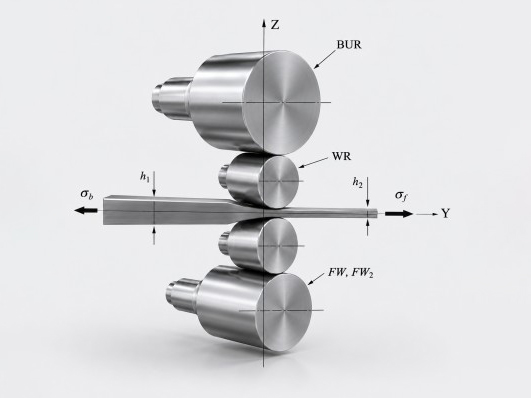

Silver alloy and titanium strip rolling on narrow strip mill

Imọ Data

Iduro Iru	4-Ga Single Imurasilẹ Reversing Mill
Sisanra titẹ sii	0,5 - 10 milimita
Sisanra jade	0,2 - 0,8 mm
Gigun Iwọn	100 - 140 mm
Ifarada Sisanra	± 0.015 mm
Ti nso Lubrication	Pipade-Circuit laifọwọyi epo lubrication
Afẹyinti Roll opin	Φ300 × 200 mm
Ise Roll opin	Φ120 × 200 mm
Iyara Apẹrẹ	0 – 0.4 m/s
Yiyi Force	≥ 80 T

Awọn anfani

Yiyi sẹsẹ Design

Iṣakoso iwọle rọ fun oriṣiriṣi awọn ohun elo ati awọn sakani sisanra.

Ga konge Iṣakoso

Awọn 4 ga dín rinhoho sẹsẹ Mills iparọ wa ni ipese pẹlu ni kikun servo wakọ ati PLC Iṣakoso eto, iyọrisi sisanra yiye soke si ± 0.015 mm.

Iwapọ Mill Imurasilẹ Design

Ifilelẹ iduro ẹyọkan pẹlu ifẹsẹtẹ kekere, apẹrẹ fun iṣelọpọ ipele kekere ati alabọde pẹlu awọn pato ọja pupọ.

Awọn aṣayan

Eto alapapo itanna yipo (150–250°C)

Nṣiṣẹ iyipada laarin yiyi tutu ati awọn ipo yiyi gbona.

4-ga to 2-ga iyipada be

Ni ipamọ fun imugboroja ilana ojo iwaju ati awọn ohun elo yiyi gbona.

FAQ

Q1: Kini iwọn ila ti o pọju?

GRM: Iwọn ila ti o pọju jẹ 140 mm, ti a ṣe apẹrẹ fun awọn ohun elo yiyi rinhoho dín konge.

Q2: Njẹ ọlọ le ṣe ilana irin alagbara, irin ati ohun alumọni?

GRM: Bẹẹni. Wa 4 ga dín rinhoho sẹsẹ Mills iparọ wa ni paapa dara fun soro-si-yipo awọn ohun elo bi alagbara, irin ati silikoni irin.

Q3: Njẹ ọlọ naa le ṣiṣẹ pẹlu annealing tabi awọn ila gbigbe?

GRM: Bẹẹni. GRM le pese awọn ojutu iṣọpọ pẹlu awọn laini mimu, awọn ọna ikojọpọ ati ohun elo mimu okun.

GRM ṣe amọja ni konge awọn solusan sẹsẹ rinhoho, pese ohun elo pẹlu iṣedede giga, igbẹkẹle ati ṣiṣe idiyele. Ni afikun si awọn ọlọ ti o yiyi iduro ẹyọkan, a tun nfun awọn ọlọ sẹsẹ ti o ni iwọn pupọ, awọn laini sẹsẹ lemọlemọ ati awọn ọna ṣiṣe irin ti adani.
Kan si wa loni fun ojutu sẹsẹ ti a ṣe deede fun ohun elo rẹ ati awọn ibeere iṣelọpọ.
